How to prepare TPM chip for BitLocker encryption in a single Task Sequence step

You may have encountered a problem with your Task Sequences that a step to start BitLocker encryption does not work as expected. Depending on a method used to start the encryption (e.g. built-in “Enable BitLocker” step, StartMBAMEncryption.wsf script), the error you are getting varies, but quite often the underlying issue is the same: the TPM chip in the BIOS has not been configured correctly. This might be due to fact that deployment engineer forgot to activate the chip in the BIOS, or because you are running deployment on a machine that was previously encrypted and keys stored in TPM chip have not been cleared. Either way – this article gives you a quick and simple way of making sure Task Sequence covers such scenarios!

In order to achieve that we will leverage Win32_TPM WMI class and PowerShell to call appropriate method. The downside of this approach is this: since we are using PowerShell, this will not work in Windows PE. In other words, if you are using BitLocker pre-provisioning – this won’t help you much and you will have to look at some other imlementation (I have briefly tried to call appropriate method using WMIC with little success, next thing to try would be a VBScript to call upon this). However, if you are initiating encryption in full OS, this solution should work just fine for you.

Now, you may feel the post has been slightly mis-advertised – while we need just one step to prepare TPM, we will add three new items to the Task Sequence to neatly cover everything that is necessary!

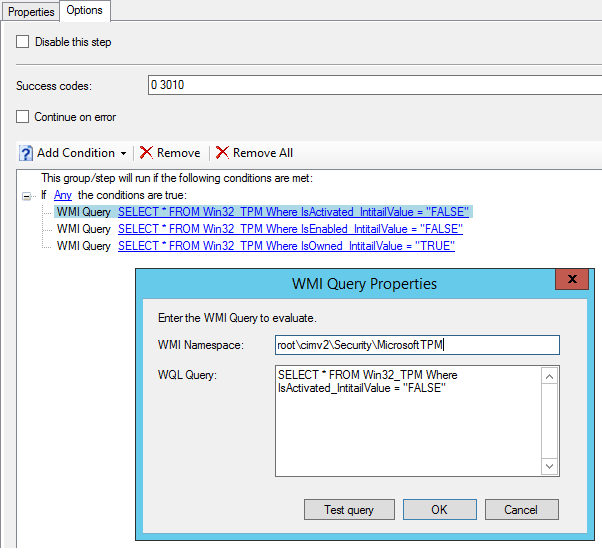

First of all, add a New Group before your step that start actual encryption and call it “Prepare TPM *“. Next, go to Options tab of that group and the below conditions. This is to ensure we only prepare TPM module if it is necessary. In order for encryption to work the first time, the TPM chip must be Activated, Enabled and NOT Owned. We therefore need to prepare the TPM chip if any of these three is not true. First of all, add new If statement and set it to Any. Next, add three WMI queries as listed below. Make sure they all reference root\cimv2\Security\MicrosoftTPM namespace (NOT the default root\cimv2).

SELECT * FROM Win32_TPM Where IsActivated_IntitailValue = "FALSE"
SELECT * FROM Win32_TPM Where IsEnabled_IntitailValue = "FALSE"
SELECT * FROM Win32_TPM Where IsOwned_IntitailValue = "TRUE"

TPM_conditions

Next, you need to add a new Run Command Line step. Here we are going to call a PowerShell Get-WMIObject cmdlet, reference Win32_TPM class and use it to call SetPhysicalPresenceRequest method. It takes one input argument in a form of a integer – we will use 10, which means Enable, Activate and clear TPM Ownership. You can find more details about it by following the link: https://msdn.microsoft.com/en-us/library/windows/desktop/aa376478(v=vs.85).aspx. So, the command you need to use take the following form:

powershell.exe -command "& {(Get-WMIObject -Namespace root/cimv2/Security/MicrosoftTPM -class Win32_TPM).SetPhysicalPresenceRequest(10)}"

clear_TPM_command

Last, but not least, you need to add a Restart Computer step. The above command sends the request to TPM chip, but a reboot will be required for the changes to take place. IMPORTANT! Depending on your machine make, model, BIOS version and BIOS settings a prompt may appear to press a relevant key to either accept or reject the change. This often can be suppressed by setting an appropriate option in BIOS (and even can be automated in the Task Sequence), however this is outside of scope of this post. Consider yourself warned!

These are steps needed to get the TPM chip into a correct state before starting BitLocker encryption. In principle, your Task Sequence should take a similar shape to the one posted below:

clear_TPM_and_encrypt_steps

Happy encrypting!
